Can-Am Fires

8949 Views 23 Replies 6 Participants Last post by  stray,
BATTLEGUN
This is the continuation or split thread from the Can-Am Pics thread. I felt this topic was worthy of it's own seperate discussion. The discussion starts below. Enjoy.

;;t;;
Reply
Save
Like
1 - 20 of 24 Posts
D
2
My '09 and my burned up '08. The '08 had 20hrs on it at the time of the fire.:mad: It waited untill I was 600 miles from home at the Hatfield McCoys to go up in flames!!!! What a way to ruin a trip........

Attachments

See less See more
Reply
Save
Like
G
Wow how did that happen? Was it the ujoint failing?
Reply
Save
Like
D
The investigator said the best he could tell was the battery shifted and the positive terminal contacted the frame heated up and caused the fire. The machine was parked for 3 hours before it went up in flames. It also damaged my fifth wheel and my wife's 500 parked next to it. My insurance company hates me!!!!
Reply
Save
Like
G
dmaxlly said:
The investigator said the best he could tell was the battery shifted and the positive terminal contacted the frame heated up and caused the fire. The machine was parked for 3 hours before it went up in flames. It also damaged my fifth wheel and my wife's 500 parked next to it. My insurance company hates me!!!!
Click to expand...
Ouch. Im sure he does hate you, lol. Glad no one was hurt. Keep an eye on the ujoint though, its know that it can fail if not properly serviced, swing around and hit the gas tank and puncture it, causing a fire, seen it happen on a renegade.
Reply
Save
Like
D
Is the ujoint problem on the '08 or the '09 machines? The '08 was a total loss, so now I have an '09 ? As a precaution I will keep an eye on the ujoints on the wife's '08 and my '09.

Thanks for the tip....
Reply
Save
Like
G
dmaxlly said:
Is the ujoint problem on the '08 or the '09 machines? The '08 was a total loss, so now I have an '09 ? As a precaution I will keep an eye on the ujoints on the wife's '08 and my '09.

Thanks for the tip....
Click to expand...
Not sure what years it applies too, but i would watch it anyways, last thing i would want happening lol. Seen pictures of a 08 rene that was fried from that, completely burnt, nothing but the frame left.
Reply
Save
Like
BATTLEGUN
Holy crap! That story blows! But...I am grateful for your willingness to share it. I am going to investigate my 09 for battery stability. You guys will hear more about this in the future.

dmaxlly, welcome to the site and thanks again for sharing the pics.

:eek:ccasion14:
Reply
Save
Like
1Bad1000Xxc
Wowser, Can-Ams up in flames. Not what I would ahve expected. Good you got it covered and replaced. Thank god for insruance huh???
Reply
Save
Like
GRIZZLYWIZARD
From what I recall, this was a problem with several units at one time. I think either a recall was issued or a technical service bulletin, but I am not 100% sure.
Reply
Save
Like
BATTLEGUN
Click Here to visit the only recall in recent years that involves a fire hazard. It has nothing to do with the battery or u-joints.

As I mentioned I will inspect my 09 800XT for battery stability and monitor the u-joint closely. This has def. sparked my interest. (No pun intended).
Reply
Save
Like
GRIZZLYWIZARD
BATTLEGUN said:
Click Here to visit the only recall in recent years that involves a fire hazard. It has nothing to do with the battery or u-joints.

As I mentioned I will inspect my 09 800XT for battery stability and monitor the u-joint closely. This has def. sparked my interest. (No pun intended).
Click to expand...

Ahh...That may have been it. As I said I remember reading about this happening.
Reply
Save
Like
G
BATTLEGUN said:
Click Here to visit the only recall in recent years that involves a fire hazard. It has nothing to do with the battery or u-joints.

As I mentioned I will inspect my 09 800XT for battery stability and monitor the u-joint closely. This has def. sparked my interest. (No pun intended).
Click to expand...
I dont think the ujoint failure was ever put under recalls, its just from people not servicing the joint, it goes dry and breaks loose, and its right by the gas tank so it runs the risk of hitting it, and fuel pouring all over the hot motor. There are pictures from one forum, dont think im allowed to post the link, but he said he was riding when he felt something warm, turned around and there was a fireball behind him. I would keep a close eye on the joint, probably re-grease often just to make sure it doesnt happen. If the battery has the risk of hitting the frame and shorting, probably heavy foam would help that.
Reply
Save
Like
BATTLEGUN
Very good point GR98. I didn't crawl around underneath too much this evening examining the u-joint referenced, but you can bet your muffler I will be doing just that, very soon.

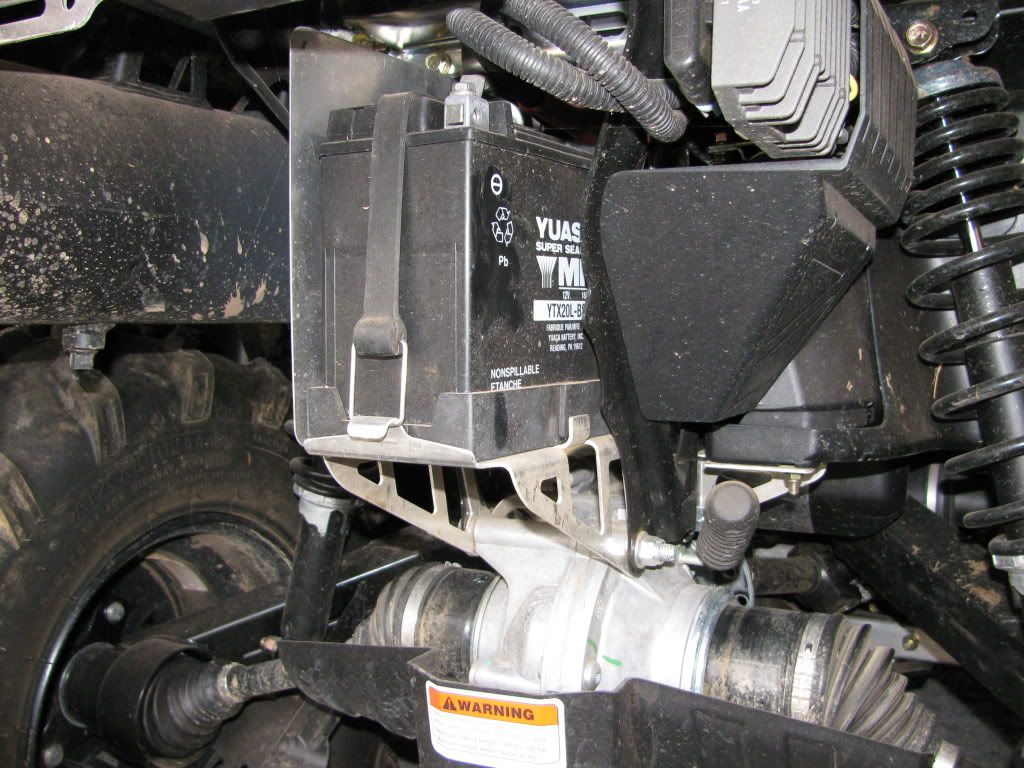

As far as the battery housing goes; I hadn't given it too much thought until this thread started. I went and examined this and found that the battery was not loose, and it doesn't seem as if it would be easily shifted. At least so much that the terminals would touch metal. HOWEVER, It is pretty wide open. Seems to me that the battery is pretty much just sittin there waitin on a rock to bust it. Additionally, the rubber strap and base plate don't give me a warm and fuzzy. Check out the picture.
See less See more
Reply
Save
Like
S
i wonder if you could substitute the rubber strap with the metal hanger and battery retainer from a renegade? i had to add a few washers to mine, since the threads weren't long enough to keep it as tight as i wanted.
Reply
Save
Like
BATTLEGUN
stray said:
i wonder if you could substitute the rubber strap with the metal hanger and battery retainer from a renegade? i had to add a few washers to mine, since the threads weren't long enough to keep it as tight as i wanted.
Click to expand...
That is actually worth looking into. If the dealership weren't so far away I'd visit them to look at the Gade's battery set-up. I will probably end up doing a home made mod unless the Gade set-up is easy and inexpensive.
Reply
Save
Like
GRIZZLYWIZARD
3TV, have any input? Any pictures of yours?
Reply
Save
Like
S
BATTLEGUN said:
That is actually worth looking into. If the dealership weren't so far away I'd visit them to look at the Gade's battery set-up. I will probably end up doing a home made mod unless the Gade set-up is easy and inexpensive.
Click to expand...
the basic setup looks identical from your picture. the only part i'm not sure about would be the hold-down on top of the battery. it's a piece of flat metal on the renegade, that "hooks" into the bike (at the front side of the battery). then, you have the metal rod that runs vertically at the rear, securing the top hold-down.
Reply
Save
Like
S
i took some pics today of the renegade battery setup. could someone advise me on uploading them? thanks
Reply
Save
Like
G
I use photobucket. Make a account, and you can upload pictures for free. Pretty easy to use, just click on choose file under uploads, and you can choose which picture you want to be uploaded.
Reply
Save
Like
